Hatch

A hatch is very important to be able to adjust and work on the sails. They have to seal against the force of the sea and wind driven spray.

This illustration shows a circular hatchway in a notional deck plane. Above is the cover with a pneumatic seal, which can be inflated to 50 psi. or 3.45 bar. The seal is a bicycle tyre, large, strong, smooth without tread and a folding bead made from flexible Kevlar. The inflation valve will protrude above and below deck

The cover is sealed into the hatchway.

The cover cannot go through the hatchway because the diameter is greater. Then where to store the cover?, have it hinged?, or attach it with a rope and have it banging about in the wind and waves ? Not good.

Making the hatch system oval makes no difference to the tyre if it is the same effective circumference. I took the opportunity to add a window made from polycarbonate (Lexan ???) for interior light and being able to watch the sails and wind direction. It a double glazed system to reduce interior condensation.

The cover can now go through the hatch way and be stored below, safely. There will  be handles attached to make the operation easier. Also a tether to stop it blowing away in a gust.

The Sail System

This second iteration of the sail has a symmetrical shape around central tensioning.  The boom controls the sail, acts as an end plate to stop any thrust bleeding away. It also collects the skin and battens when reefed and completes the structure of the mast.. The whole assembly swivels on the central point. Again the mast has no significant effect on sail apart from holding it up.

Battens help to give shape to the sail material which has been cut and joined to give an aero-foil shape. The design of this batten comes directly from studying the nine section tail of a dragonfly. It is to be integrated inside the sail in pockets. The semi circular shapes are interlocking hinges, held together under compression. Between each section there are angled shoulders when all are closed on one side to form an E347 profile. On reflection I thought this made the sail too clumsy to build and may well suffer from too much wear to the pockets. Start again.

Here is a schematic of a batten on the boom to give me an idea of size of structure. This is a great break-through drawing because I saw the central tension should be applied not at the centre of the area (1/2 chord) of the sail but as close to the point of aero thrust generation. As the sail moves from one side (tack) to the other the central section barely moves. At this point I envisioned radiused tracks to maintain tension on the leading and tailing edges of the sail, (Leach and Luff) I had not got very far resolving the fixtures.

The breakthrough resulted in this wide, low aspect ratio, rig with a fore /aft mast. The boom is now a jointed trellis structure. Fairings can be added to reduce windage drag. The major advantage to this being the effort from the thrust of the sail can be accurately placed for the best characteristics of the hull shape. The red, central panel represents car seat belt webbing with a breaking point of 2500 kg. Handily it comes compatible with seat belt latches which are made from high grade stainless steal.

The big drawback is it’s ugly, clumsy, difficult to work around and ugly. Start again.

The batten was simplified from nine sections to seven. This image shows on the underside the shoulders have closed and the gaps on the top side show the angles that create a simplified E347 in the tensioned webbing. The whole sail surface is moulded together with the battens.

I decided to reduce the sail area, reduce the forces, make the battens all the same length and extend the tension system to the leading and trailing edges. The sail area is relatively low compared to racing boats, but by having two sets they can be balanced around the Centre of Lateral Resistance (CLR)

The boom is jointed and takes up the shape of the sail. The sail material is bonded to the webbing and batten sections.

To reef the sail the tension is released from below, through the mast, and sail lowered. The central latch is released and the one from above attached then either end are done, one at a time. At no time is the sail  released from the boom and is always held by two connections. The tension is re-applied.

Tension is maintained in the moulding of the sail, especially to give the offset nature of the top webbings. The first is to the leading edge, the second to the centre, the third to the sail at the same angle (45 deg.) as the first, and the fourth to the trailing edge. Reducing tension very slightly from below, through the boom, on the centre web will increase the arc in the battens.

3D Printed Masts

What follows is from the first of nine iterations is the development of a system to generate thrust from the wind, using first principle thinking.

Humankind discovered if you held a surface up, in the wind, it exerted a pull. In the case of kites, it is string or rope, with a boat it is called a mast, which is a big upright stick. Another stick was used to stretch the surface out. Different conditions across the world required different arrangements. Fishing, transport, cargo, warfare, discovery and competition all have their own different developments. All have the common drawback of the mast creating bad airflow around itself and an obstruction to easy sail handling. The weight of the mast and rigging and forces from the wind were and are usually led to the boat’s strongest member, the keel.

This is an initial sketch of ideas collected together to see what they look like. I choose one idea and give it more thought and work. I then stop, assess and analyse, and if a drawback out-ways the advantage then it is set aside, but not rejected. Later ideas and developments can redress the balance and make something feasible. The biggest difficulty, I find, is keeping sight of what I am trying to achieve, but not knowing how to get there, because no one has gone there before, that I know of. A simile would be, searching for a black cat in pitch-black room without knowing the size of the room nor what a cat is.

I wanted to hold a sail up into the wind but remove the stick. So I chose a catenary arch, one great advantage being it gets stronger the more it is loaded. Brunelleschi used it the structure of his cathedral in Florence and Gaudi in the Sagrada Familia in Barcelona. The best way to introduce loads into a tube is tangentially. The sail is held up centrally and rotates inside the arch. However this leads to the area being too small, so I added a second mast and sail.

3D printing enables very accurate manufacturing of aerofoil shapes, both straight and curved. The essential feature of a catenary arch is if the loads are kept within the limits of the structure it remains incredibly strong. Here is an illustration of the cross section with a width (chord) of 100 mm with a Teflon tube 8 mm with a 6 mm Internal Diameter (ID). 5 mm Dyneema rope with a breaking strain of 2500 kg runs through this and transmits tension through the sail back into the bottom of the mast, equally to both sides.

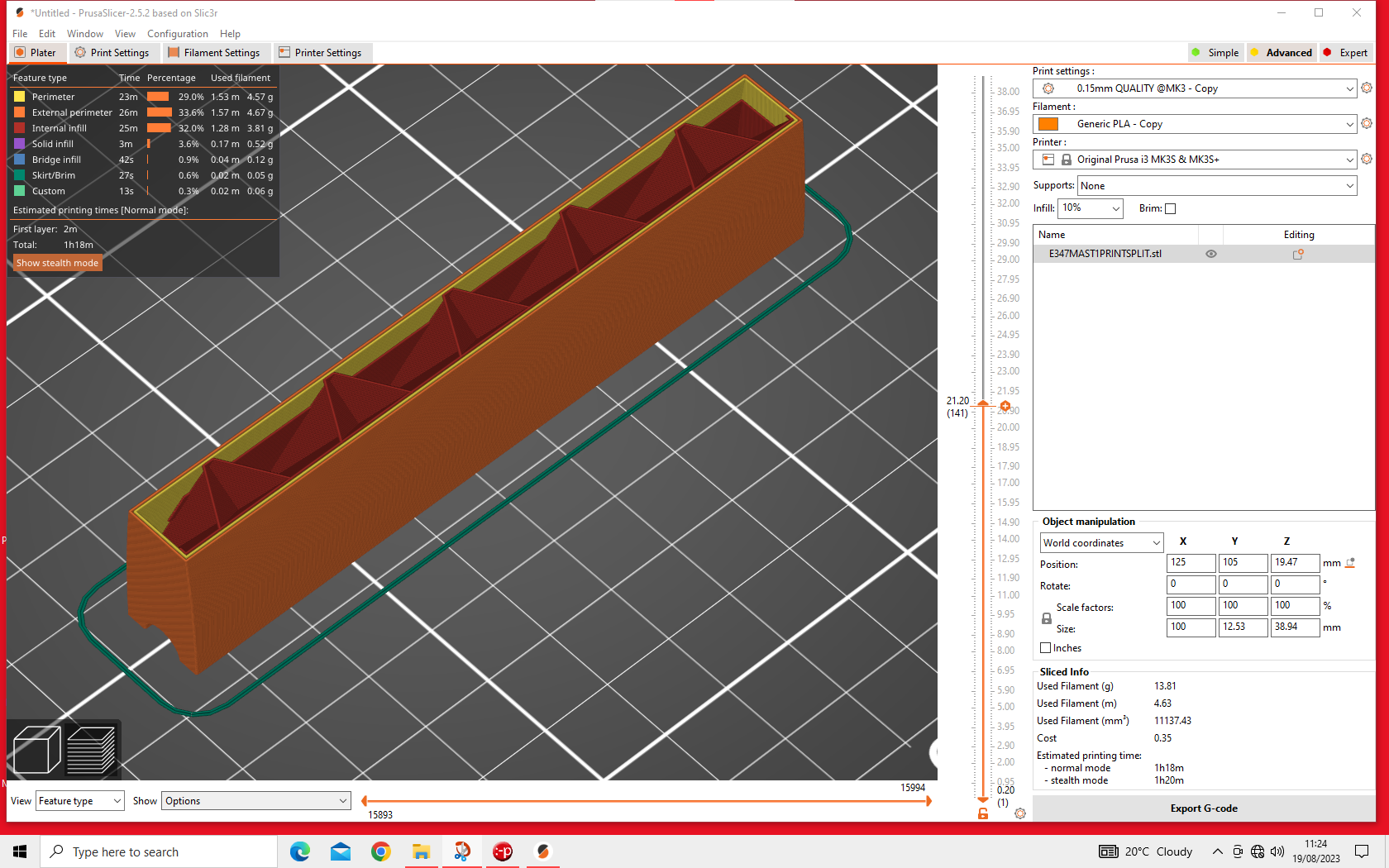

This is a screenshot of the slicing programme output of a vertically extruded printed core with internal bracing. Presently there are machines that can print to 2.1 metres high, although I have encountered vibration problems with smaller scale objects.


This represents exactly the same cross section but extruded horizontally and split vertically, enabling curved items to be printed.

These curved sections are then bonded together in a ‘’brickwork’’ fashion so no joins run across the complete width of the structure.

Boat in a Box

This project is inspired by the life and work of Sven Yrvind, legendary sailor, boat designer and builder.

https://www.yrvind.com/

One incident in particular literally shaped this boat. Sven was interviewed in Madeira. He had to turn back from a single handed attempt to sail to New Zealand, round Cape Horn.

The boat he built was good, made with the best materials, but he realised it was not good enough to risk the worst conditions there are. Sven was very despondent, usually he is very positive. He did not have enough money to ship the boat back to Sweden, nor to scrap it, craneage, transport and disposal cost.

As good starting point, I thought, was to design everything to fit into a standard 20 ft. shipping container, the red box represents the internal dimensions.

The drawings are 3D CAD turned into illustrations, life size and show the core of the structure. No plugs, moulds, wastage and minimum sanding. All surfaces to be covered in high strength organic composites. The very minimum use of hydro-carbon based materials is the major target.

There are printers, at present, big enough to produce this design, so this is not sci-fi, nor photoshop fantasy.

This is not a racing boat.

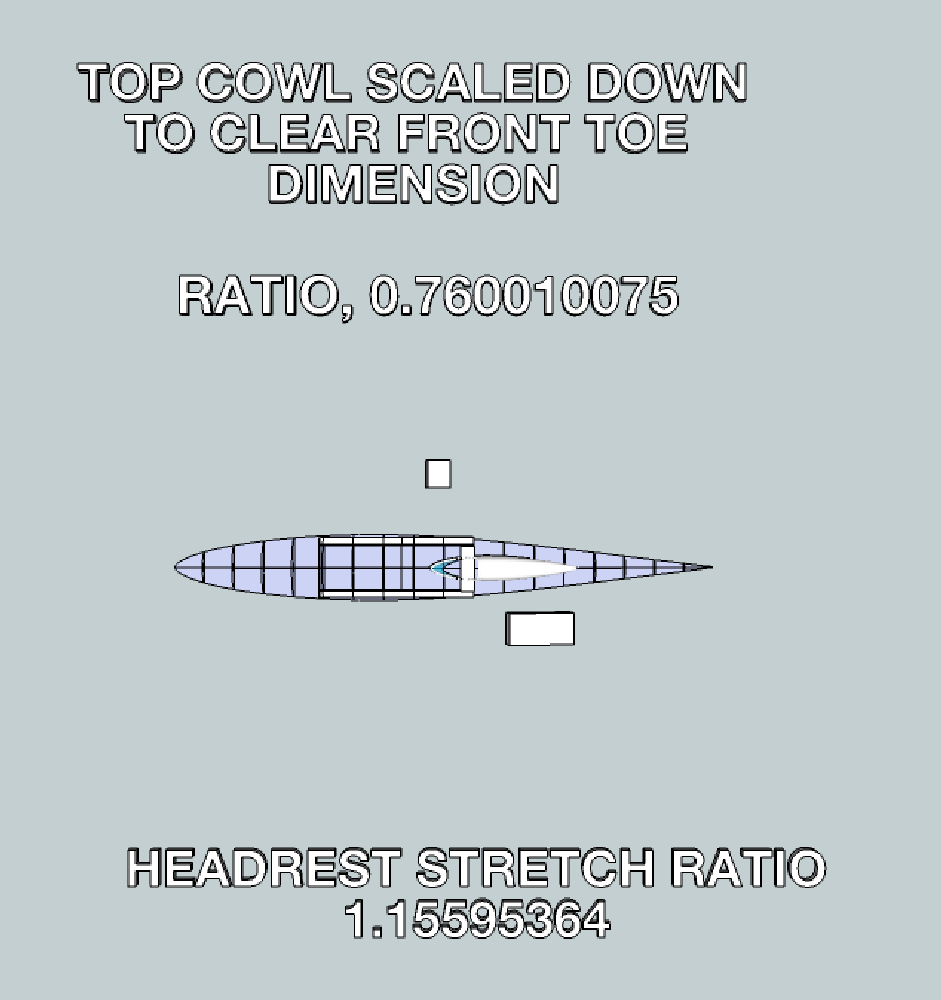

As with the 1 metre pond yacht, the aero profile is Eppler 347. It is used for the hull sails, masts, keels and modified for the superstructure.

There are two small sails, so one person can manage the power and handle the reduction of area (reefing).

Aerodynamics are as important as hydrodynamics, so there are no drag inducing handrails, standing or running rigging nor lines. All controls for sail management and steering are internal.

The yellow ovals are hatches and are pneumatically sealed.

Here is the boat leaning at 38.7 degrees, there is no change to the under-water shape, so there will be no change in handling characteristics.

It is designed to exist in the water like a fish, not fight the element, but carefully divert the water with minimum disturbance. It should go through the waves not climb over them. Sealed against leakage rather than trying to cope with the after effects of deluge and soaking clothing and bedding.

Dried out on a sandy beach, waiting on the tide. The figure is included to give scale to what is really quite a small boat. There is enough clearance under the hull to land on a beach of small rocks.

The keels act as a jig, in construction, to align the 1 metre sections for bonding

The tail is the full extent of the Eppler 347 to complete the flow around the hull with as little disturbance as possible.

1 metre pond yacht

This is the starting point of an idea that developed into a much larger project.

Aerodynamics and hydrodynamics are very similar, apart from water is about 1000 times more dense than air. I had a couple of ideas concerning the reduction of drag in a sailing boat. In order to test them I could build a pond yacht, to 1 metre class rules, and run side by side comparisons. In that way I could avoid all the work, expense and endless, endless sanding of building a full size boat.

Until recently boat designers have taken huge amounts of resources optimising surface areas in contact with water. Aerodynamics have been largely ignored in the mistaken belief that they do not come into play until much higher speeds are in play. In this design anything that could induce drag was discarded, simplifying the design.

The hull is Eppler 347 profile, as are the wing, fin and bulb, and is 1 metre long. The cross section is circular.

I chose an Eppler aero profile #347 for it’s low drag characteristics while also retaining enough ‘’body’’ to make a viable hull. This was rotated 360 degrees and left complete. There is no rudder system shown, possibly the keel foil can be used to steer.

As the screenshots show the hull can lean up to 80 degrees from upright with no change in hydrodynamic shape, characteristics or handling, being able to sail full on at 80 degrees lean. The bow is intended to move the water aside without creating a large bow wave and also go through a wave. Traditional bows finely cut the water but also ride up over a wave creating a rhythmic rocking-horse motion.

Yacht at 0 degrees.
Yacht at 45 degrees.
Yacht at 80 degrees. The under-water, hydrodynamic, shape remains exactly the same as 0 degrees.

The sail/wing/mast is a symmetrical E347 divided into leading edge mid-section and tail-section and hinged. The controls run up through the midsection and apply torque at the base and half way up, to orient the sections into a power generating aero foil. There are no standing rigging or lines, therefore no drag.

The nose and tail section are rotated at 7 1/2 degrees
This is a later iteration showing the hinge section, with spacing for printed thin wall skins. The main central support is reinforced carbon fibre tubing

The gaps between each section can be sealed with Teflon strip, edge-on. This may stop, or reduce, pressure equalising from low to high.

The lower parallel section and upper, tapered, section of the wing.

The major flaw to this wing system is being unable to reduce the effective sail area without becoming overly complicated and heavy.

Velomobile development drawings: Part 7

I thought it best to build a prototype to test the steering geometry, as wobbles have been reported. This to be built with aluminium section and composite rear triangle.

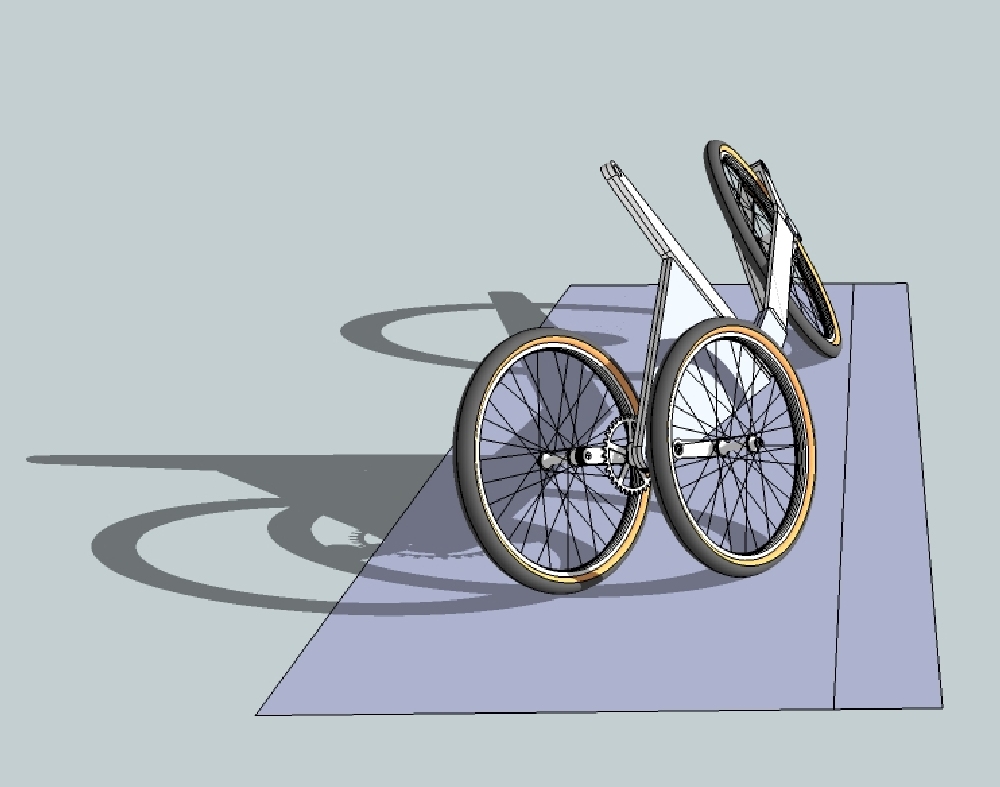

This is the geometry involved. The idea of the tilt axle is from Vi Vuong, aka Futon Express, from the USA.

The rear axle uses a bottom bracket system, 100 mm cranks, 15 mm axles and the chain wheel represents a disc brake to stop the tilting.

Chassis with drive structure, longerons, windscreen frame and ‘’gills’’ for bending.

These are the intersections to define body parts and joints.

The final iteration with 26 inch wheels all round.

Velomobile development drawings: Part 6

I looked first at the volume of the space taken up by rotating the feet on 175 mm cranks, and compared that to 140 mm cranks. Being so far forward it makes a difference in the volume of the nose and it is easier to push through air.

Also with this I wanted the following:-

  • A single simple form with no jointed surfaces, spats and head-farings. All joints on exterior surfaces of aircraft have fillets between them to reduce vortex drag.
  • The simplest drive line.
  • A faired recumbent bicycle that did not fall over when you try to get in or stop.
  • I wanted it to tilt into a curve to reduce the loads and stress on the wheel system and chassis so they can be lightly built.

!75 mm compared to 140 mm crank frontal areas

140 mm crank rotational volume.

The chassis bounded volume with 26 inch front wheel and 20 inch rear wheels. The chassis will be built from 3.4 mm Corex and 11.5 mm honeycomb board hot-glue gunned with 12 mm conduit.

Velomobile development drawings: Part 5

I have decided to update this site and describe the line of thought that led to the final design choices, for a velomobile trike.

Getting good airflow over breaks in the surface at the front, is near impossible, so I moved the steering to the rear wheel.

The next stage (body 10) was to try and simplify the form and integrate all the elements using negative pressure and try and do away with surface joints, at the front, as much a s possible.

The wheel spats are more integrated into the nose and the head faring smoothed into the body. I was happy, I had conquered all my demons.

After a short break I returned to this design and gave it a hard critical review. I had lost sight of the friction in the drive line. With so little power available you cannot waste any on extra bearings and changes of direction and weight

Even this simplified form had too many parts and too much wetted surface area.The cross sectional surface area of a reclined human body looking over the knees remains the same. But what about the area of the feet so far forward in a form, what is it, ??? and can it be reduced, ???

Velomobile development drawings: Part 4

In Part 1 of this write up I said the steering geometry is based on the invention of Jurgen Mages and his Python recumbents:-

http://en.openbike.org/wiki/Main_Page

There has been a great deal of discussion and argument about the best steering angles for any size wheel in any application of the bicycle, road racing, track, mountain bike, shopping bike. All have their subtle variations in angles and trail, all to do with where the tyre meets the ground and pivots. Then along comes Jurgen who places the steering head behind the wheel, does not attempt any of the known rules and it works.

What Jurgen discovered was that at a steering head angle of +/- 65 degrees as the steered wheel is turned the frame rises. The weight of the rider pushes back down stabilising the system.

I refer to Python Projects Survey  http://www.python-lowracer.de/projects.html   where I find the trail figure for a 20 inch wheel is +/- 140 mm and a steering pivot angle of 57.5 – 71 degrees. Now I know this is for two wheeled vehicles and I am designing a three wheeled vehicle but you have to start somewhere.

At this point in this project I have developed a simple idea. I have looked at wheel sizes, axles, airflow, body shape by profile stacking, rotation, and extrusion. I have enough toys to play with.

Now is the time to measure the movement in the body structure to give a reasonable turning radius. To do this I use the original Chassis Bounded Volume set up with 20 inch wheels. The file is smaller and takes less generating time. It also allows me to check I am not entering any clearance borders.
Importantly it will also show where a chassis will have to reach to tie it all in to a structure. I take the axle and wheels and add a rotation block with its axis at the point where the 65 degree steering angle meets the ground.

I then place a circle at the origin (the centre of the 3 axiis) and make it a Component. The axle, which is a separate Component is then placed with the trail point at the origin, and tilted forward. Both components are then made a Group. When the Group is tilted back so the axle is level the handling circle is now at 25 or 65 degrees. When the rotation tool is applied the handling circle the axle rotates at 65 degrees to the horizontal. I then position the axle to the correct point on the body and rotate the axle. Axle and body are now combined as a Group. When the Group is rotated to get the axle level the body leans away from the turning direction.

At this point, I reversed the direction of the steering pivot, everything else remains exactly the same. The body now leans into the turning direction. By the findings of Jurgen the geometry is self centering so to pull the body back upright release the steering.



I repeated the process with the rendered body and the 26 inch wheels and straight axle to check for clearance, and this is what you get. I still have to carry on with the development of the one piece axle/nose and body bending design, but this is a good indication the geometry might work.

When I started out to design something I did not ‘see’ before, I did not expect this, but that is why you do it.

Velomobile development drawings: Part 3

In various drawings you will see blocks and cubes dotted around. These are for handling, they allow you to manipulate the component accurately, Sketchup rotation tools have a hard time handling curved surfaces.

Now I have a quick-and-dirty knock up drawing. some parts are accurately placed but nothing is fixed or final.

The only restriction I have placed on this design is that the maximum width is 800 mm, to go through a door in my apartment.

The first thing I checked for was the sight line, it was way too long.
So I redesigned the body with a straight line nose profile from just below the eyes and clearing the front axle.
It was so ungainly I am not allowing it out in public. Maybe the theory is sound but it does not always produce pleasing results as I found.
Maybe there is work to be done improving visibility without scaring people.

So I went back to body 1.
I had a 20 inch BMX wheel lying around while i was drawing. The smaller diameter rims have a hard time with the condition of the road and cycle track around here. I drew 26 inch 559 wheels and spats.
The increase in surface wetted area and cross sectional area is offset by the decrease in rolling resistance and tyre availability.

The down side of the larger wheels means the air flow between the spats and nose is becoming more restricted and looks like it will generate higher air pressure and therefore drag.
I act on niggles. I am not very smart and it takes time for things to sink in. Then they start to niggle at me, then I have to do something about it. The problem was always there, it is just exaggerated with larger spats.

The thing I tried was to increase the size of the axle fairing and placed so the air travels up the profile increasing in pressure. However when it goes over the hump on both fairing and spats the pressure will be negative by the time it hits the nose which has effectively pushed back.

Body 3.1 is the same but with an enclosed head fairing and a larger rear wheel spat, but this will cause grounding problems.

Body 3.2 Is another variation on the head fairing.

Body 4 gH2Ost Rerun:  is the beginning of thinking about the engineering of bending the body to steer the wheels.
I have lying about some 100 mm diameter Tumble Dryer hose, 25 mm compressed length stretches out to 120 mm, while retaining it’s circular form. I also have 80 mm hose.
I needed a semi circular cross section round about the trailing edge of the spats. At the same time I took the opportunity to split the body into two zones.
The upper section for the width of the arms and shoulders and the lower for the rib cage, hips and feet. I used E 817 for the upper profile, angling it in from the spats through clearance at the shoulders to the tail.
I went back to Loft Along Path and this time got it to work. This essentially the same system as ‘gH2Ost’ a tapered central flat section with circular rotated profiles on the edge. The air flow underneath needs more work. The air flow on top is improved and the overall shape is simplified.

With my new found success with LAP I went back to body 1 and rendered all the E 214 profiles.

Body 5. With the body 1 chunk I reversed the trike setup and put the spats at the back. This has the chance of excellent airflow well down the form. I can also reduce the overall width down to +/-600 mm.

Velomobile development drawings: Part 2

The next step was to measure the dimensions of the body I am aiming to transport.
I set up a board as seat back and surrounded myself with boxes for the rib cage/hips, shoulders, back of the head, eye line, leg bent and straight for knee height.
The bent knee height sets the velomobile body height which sets the eye line.

I then drew these up as Chassis Bounded Volume. It is NOT a chassis it is only the volumes and boundaries of a human body cycling lying down.
The light blue plane is the flat foot length.
The top edge of the green plane is the knee height and relative distance.
The dark red plane is the back of the shoulders and head The purple plane is the eye line height and distance of the eyes from the back of the head.
The yellow plane is Eppler 214 scaled to clearance fit at the shoulders at the dark red plane.

I then place a station at the red plane with 16 points where 8 X Eppler 214 profiles would pass for minimum clearance.
There is clearance below the Chassis Bounded Volume for sag in the hammock and the 150 mm (6 inch) ground clearance.
A 26 inch 559 rear wheel and the 20 inch 406 wheels, spats and inboard axle, were placed approximately in the right area.

An Eppler 817 hydrofoil profile was chosen because it is designed to work at low flow speeds and is rear loaded, that is its maximum height is well back on the chord line. This was scaled in the vertical plane, only to give a taut profile line to the nose of the body.

As with the front wheel spats the E214 were then laid on the profile line and then scaled to pass through the station. Whatever shape was generated would be exactly right, but I had no idea what it would look like! I thought the nose profile was irrelevant because the E214’s are stacked with no distortions between levels, aah, well, maybe.



Velomobile development drawings: Part 1

My aim in designing this new velomobile was to make it as simple as possible while reducing the effort to push it through the air. I also wanted to make something with as few compromises as possible.

The major influences at work in this design is the invention of Jurgen Mages and his Python recumbent bicycle geometry. This went completely against the RULES of bicycle steering geometry and created bikes which not only steer and handle but have done so over thousands of miles of commuting and touring. Please see in

http://en.openbike.org/wiki/Main_Page

One of the biggest sources of drag in a land traveling vehicles are the holes needed to clear the wheel(s) when they steer. Reduce the clearances to a minimum and you are doing as much as you can.

This image shows the plan view of a 20 inch 406 BMX front wheel. The aero profile is Eppler 214 Low Reynolds number which is calculated for low speed air flow. The ellipse is to give enough clearance for tyre punctures while not creating interference drag. The leading edge profile comes from the ellipse.
I could not imagine what this might look like, so I had to generate it to find out. This latest design completely changed my approach. Usually I draw what I want and then work on it until I am happy with the result. This time I set out the rules and see what comes about and worry about making it later.

The wheel does not pivot in the fairing, so pivot the fairing, this creates aero problems with the axle/fairing join. Simplify the whole front end and make the wheels, fairings and axle one piece. This does away with pivots, uprights, steering arms, rose joints and a mass of nuts bolts and washers.

“Nothing weighs less than nothing”

The next step was to put the disk brakes in-board. The axle then only had to deal with bending forces, all torsional braking forces are dealt with in the central structure leading directly into the chassis.

Make the nose of the body one piece with the axle and the messy aero join is avoided. Now bend the body to steer the wheels. So far I have come up with 3 ways in principle to do this.

Velomobile skin on frame body from Cezar

Recently Cezar Totth from Romania contacted me with this message, and I have included it and the images here, as it is similar to what I am doing.

Hi Ken,

I just started a sketch for a simple and lightweight skin-on-frame velomobile hull.
Not aiming for that gorgeous streamline you made, I’m more into building simplicity and comfort, that means fatter & shorter, open cockpit, with fewer longitudinal tubes.

My current target is a light electric commuter delta trike with pedal assist.

I started a 1/2 scale model frame made of 11mm pvc tubest.

Thanks for your inspiring effort. As I mentioned, I find it gorgeous.

Keep having fun,
Cezar

v1

v2
v3

v3

v4

v5

IMG_20151219_203423

IMG_20151219_203446

IMG_20151219_203550

Yelomobile, velomobile, first trial run



44

This was the first test of the Yelomobile, the first time the trike, and velomobile, had moved in over 2 years.
We had previously spent some time aligning the body to the frame for cycling clearances.
However between then and arrival on the track the adjustments had shifted again.

45

All the data was collected on a Garmin sat. nav. and a heart rate monitor. Cadence could not be monitored, today.
Charles completed a couple of shake down laps and then started a flying lap of the 400 m cycle track in Bellahouston Park, Glasgow.
The same gear was used throughout.
He tried to maintain a speed he would normally use for long distance cycling of around 18 kph, +/-11 mph, for 10 laps.
This pace would be the target for +/- 50 miles a day for 100 days, +/- 5,000 miles.

46

We then fitted the body.
Charles started from a standing start and then concentrated on producing the same cadence and effort.
He found for the same effort he was spinning out and his heart rate elevated trying to keep up.
This suggests a larger outer chain ring may need to be fitted, or reduce the effort for the same speed.

Yelomobile Test Results1

47

Comparing the information at lap 5 the duration was reduced from 08:32 to 06:52 (-18%).
However the heart rate was 14% higher. Charles reported it just felt easier.
We then had to leave to meet an appointment.

It is way too early to early to draw conclusions but initial results are encouraging.

48

Velomobile: Coated and painted

40

The bare Dacron is sealed with Golden Gel Mediums : Self Leveling Clear Gel, mixed 1:1 with water by volume.

41

The gel stops the paint from bleeding through the skin, and adds the first layer of waterproofing.

42

Two coats of Golden Cadmium Yellow Medium Hue were then applied. The paint was mixed 1 volume paint to 2 volumes of water

43

Charles getting fitted for a new velomobile. I used approximately 474 ml of neat paint to cover the outside and edges.

44

The Lexan polycarbonate sheet comes with 2 protective skins. These were peeled away to allow gluing, using Evo-stik contact adhesive, and pop riveting.

45

The wheel discs are held on from the back.

46

The Dacron and protective skins were left in place on the windscreen until all coating and painting was completed. Three longerons were left in place to maintain structural strength. They are narrower than the distance between your eyes so they do not register.

Velomobile: Skin shrunk on

Front elevation

Front elevation

The skin was cut using the pre- shrunk pattern. I had to learn how to use a sewing machine to do this, so it is NOT perfect. It now has to be sealed and painted with acrylic mediums and paint. I use Golden acrylics.

Side elevation

Side elevation

The wheel covers are PVC Foam rims and hubs with Corex spokes covered withe Dacron.

Three quarters above

Three quarters above

The tail is covered by sewing the two halves along the spine,

Nose and wheel well

Nose and wheel well

The Dacron is heavy duty polyester sourced from Kudzo Craft. It is used for covering kayaks and small boats. I did not think aircraft fabric would hold up to being handled 200+ times on a long ride.

Velomobile body pattern wrap

The pattern is shrunk bubble wrap.

The pattern is shrunk bubble wrap.

This is the body frame covered in bubble wrap which has been shrunk to fit with a heat gun. The bubble wrap is about the same width as the final covering material, so this is a very accurate pattern. This gives a quick and cheap way of giving a surface to sketch ideas on to before committing to the final and harder-to-come-by Dacron. The red/brown lines are electrical tape which have been stretched on to give the cut lines.

Velomobile body construction progress

First position of the diagonals and the wheel well jig

First position of the diagonals and the wheel well jig

The forward half leaving the floor and the tail. Shut faces are PVC foam.

The forward half leaving the floor and the tail. Shut faces are PVC foam.

The diagonals interfere with the drivers knees on the first trial fit.

The diagonals interfere with the drivers knees on the first trial fit.

Checking for sight-lines

Checking for sight-lines

The floor is supporting the weight of the body but there are many clearance problems

The floor is supporting the weight of the body but there are many clearance problems. The diagonals have been moved. The hinges are tried in place.

The shut faces have been replaced by plywood for durability. PVC Foam is stiff but a little soft

The shut faces have been replaced by plywood for durability. PVC Foam is stiff but a little soft

One of the front body hinges attached to a 3D printed attachment point

One of the front body hinges attached to a 3D printed attachment point

Frontal aspect

Frontal aspect

Velomobile: Zip-Tie Connections

test pieces velomobile construction

test pieces velomobile construction

The great advantage to using zip-ties for joining is they can be adjusted as you build. They are light and incredibly strong. I used them with PVC conduit tube and ply bulkheads to build the “”Blimp”. This is where I started again, this time with PVC tubing and PVC foam bulkheads.

IMG_2838

I knocked up a test to see if the foam bulkhead could take the strain of the nylon zip-tie which can be sharp. The tube took up a tilted position. I redid the test three times using different wraps until I got a self locking result with final straight pull through.

IMG_2841

IMG_2843

Using tubular stations brought another development line. Each solution also showed a weakness, and by trying to solve it, brought another knot. This is called ‘praxis’, learning by doing.

IMG_2813

The final process involves temporarily holding the frame together to get the spacing correct. A 5mm hole is drilled through and through the longeron into the frame. All frames and bulkheads are done at the same time. The longeron is then turned 90 degrees. Two zip-ties are used, starting on opposite sides, The 5mm hole in the frame is enough to locate the longeron. Using a single 200mm tie is possible, but it can be clumsy in confined spaces and time consuming. The extra block weighs 0.165gm. which is reasonable for all the avoided frustration.

Velomobile: Pixels to plastic

900MM STATION

900MM STATION FRAME

Once we had agreed the drawing Layout One.1 was a good starting point for a build, I started the process of converting the outline drawings to working ones. This means placing the 28 lengthways 15 mm pipe (longerons) inside the outer skin. I started with the 900 mm Station and made it the Master. This has a registration box that is used in each seperate Station, and remains identical throughout. My initial idea was to print the Station on to paper and use that as a template to cut flat boards. The registration box stops the programme deciding what size each one is best for you.

IMG_2570

Two things happened about the same time, I bought a laptop projector and Davy Jamieson introduced me to underfloor heating pipe. At 16 mm it has 2 layers like the PVC plumbing pipe, but it has an added layer of aluminium. When you bend it it retains the shape. I redid the drawings with 15 mm and 16 mm pipe and projected the drawing directly on to a board, taped in the registration box on the board and the feet of the Workmate and tripod on the floor

.IMG_2574

IMG_2576

IMG_2577

IMG_2582

I built a frame called a Strong Back to support and keep all the Stations properly spaced and in line. I should have stayed with my first plan of using aluminium extrusions. It is more expensive but it would not have twisted and warped like the timber in the centrally heated atmos. However this failure has lead to a solution which could give great benefits to structural frame strength and building simplicity, more later.

IMG_2598_2

IMG_2600_2

Charles and I then lashed the structure together loosely with zip-ties. At this stage nothing is really finalised, the drawing is one thing, what we have here is another and it can be useful go with what evolves rather than rigidly pursue an ideal.

Velomobile design: Iterations

LAYOUT 1.3.2RED OH

I made a start on a Sketchup 3D drawing to have something to point sticks and throw rocks at. The first task is to cover the rider and front wheels. I wanted to keep a simple shape, and deal seperately with the head above the shoulders to give minimum frontal area. The body frontal area is determined by the height and width of the shoulders, and the height of the knees as they cycle. The wheels cause a lot of turbulence. If you enclose them, then the body has to be wide enough for steering clearance at full lock. If you try to pursue one aspect of a design for purity of function it has a terrible habit of showing up flaws in another area. I don’t like compromise, but trying to find the best balance of the least offensive solutions is often the most you can hope for. I had already been through this with the “Blimp”, so that seemed a good starting point for development.

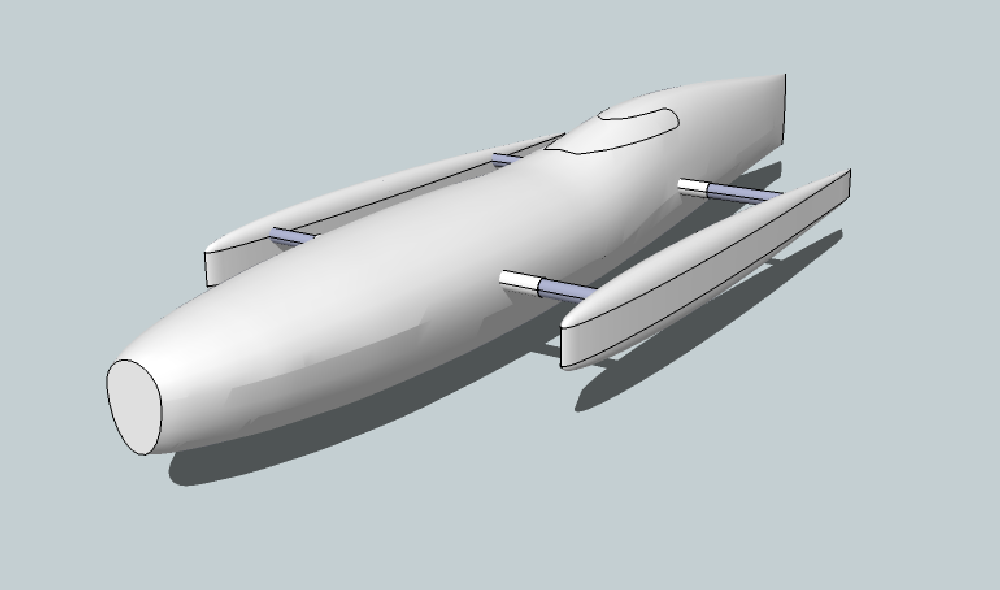

LAYOUT THREE COMBINE 1

Building the drawing in two parts and combining them was too much lke hard work and showed up how difficult the real construction could be. So I combined the head faring into the main body, at the cost of increased frontal area.

LAYOUT THREE COMBINE 1.5 nose

This looked OK until I put in the clearnce for the feet. This gave two ‘nostrils’ which appeared to be scooping air into the body.

LAYOUT THREE COMBINE 1.5

I added an air-dam but this unbalanced the look badly, I tried an elliptical dam guiding the air around the wheels and away again, but again it looked very difficult to build and keep light. The dam would have be able to to rise over Speed Bumps, adding complication, weight and jamming.

LAYOUT ONE.1

In order to divert the air around the feet I lowered nose, and the tail, to smooth the air flow and balance the shape.

LAYOUT ONE.1.1

LAYOUT ONE.1.3

Charles Barnard’s long distance cycling history

I wrote up the section on Charles’ cycling travels from memory and like a good journalist I got it wrong, here is the real story;-

Charles Cycling History

I retired in 2000 and began cycling as a hobby almost immediately, having done no cycling since the early 70’s.

In July 2001 I took delivery of a touring bike that had been designed to cope with my 6’4″ size and sitting upright riding stance.
I made several trips in and around Glasgow, and became addicted to cycling such that my distances rose from 5miles to 15, 35
up to 50miles over about 6 months. More miles seemed better and I soon went achieved 100miles, albeit at the pedestrian
average speed of 10mph.

My first long trip on the new bike was later in 2001 from Pollokshields through the city and up the Forth Clyde canal cycle path to
Bonnybridge. I took the road up to Stirling on to Callander then Crianlarich, where I turned to head back to home.
The trip was about 150 miles and took 13 hours to complete but proved to my satisfaction that the bike was ideally suited to
long distance touring. As usual I travelled at a steady 10mph.
I continued to cycle up to 100miles a day (3 days per week) for the new few years.

In Jun 2002 I loaded up the bike with panniers full of luggage and took the train down to Plymouth, where I took the ferry
across to Roscoff in Britanny. On this trip I travelled up to Rouen across country to Rheims, down to Troyes, Dijon and finally
arriving in Lyons having completed 1000miles.

In 2005 I undertook a charity event to cycle around the edge of France from Calais to Brest then Nantes to Bordeaux.
I continued down to the Pyrenees and then went from Biarritz to Perpignan in the foothills. I followed my Route up to Montpelier
on to Marseille then to N
ice. From here I followed the road to Grasse then Avignon and up the Rhone to Lyon.
The journey continued to Besancon Mulhouse Strasbourg up to the eastern top most border with Germany.
Here I turned west and followed roads via Metz Sedan Lille and back to Calais.
Total 4800km (3000miles) took 64 days in the saddle with 30 rest days. On average I covered 50 miles per cycling day.
Helen my wife drove our motorhome so that I always had a comfortable bed to recover from my ride.

I did encounter several saddle sores on route which made me think seriously about getting a recumbent trike,
as it doesn’t have a saddle but a proper seat. Another factor was battling the elements in an upright riding stance is very tiring.
The recumbent position doesn’t suffer from this problem as you ride in a laid back position with legs out in front.

In 2008 I cycled from Saint Jean Pied de Port over to Pamplona the across northern Spain via Burgos, Leon and Astorga to complete
the Pilgrimage to Santiago de Compostela ( St James Field of Stars) a distance of 500 miles. It was a very enjoyable journey.
In an average year 100,000 people walk the pilgrimage and about 30,000 cycle it.
Whether you are religious or not everyone is friendly and the welcoming. You carry a passport with you and get it signed along the way.
When you reach Santiago you exchange the passport for a certificate of absolution, or achievement depending on your beliefs.

I enjoyed the experience so much a repeated it 2010, and my trike broke about 100 miles from the end. I completed the trip in
Feb 2012 on my touring bike.

One feature of cycling that I found very dispiriting is adverse weather. Battling sting winds on a bike can result in almost no
progress with your journey. This battle is lessened by using a recumbent, but the cold and wet are bigger problems than conventional cycling.
An ideal solution for me would be an enclosed trike or velomobile.

This is what Kenny is busy designing and building.

Regards Charles

Velomobile start of a new project

Charles wants a Velomobile, a small human powered car, to complete a challenge of cycling round Britain. Charles Barnard is a long distance cyclist, he warmed up by doing Lands End to John O’Groats followed by 4,800 kms round the perimeter of France, then capped that by cycling  864 kms along the Pilgrim’s Way, up and over the Pyranees, to Santiago de Compostela, in Galicia, N.W.Spain. All of these expeditions have three things in common, weather, wind and sun. Singly and in combination these elements can be very wearying, to the point of psychological collapse. The answer, Charles decided, is a Velomobile. The shelter will keep you dry and the aerodynamics will reduce the effort required. If the reduction is only 10%,  it is cumulative, day to day, and then over 100 days cycling results in a saving of 10 days in simple terms. That is a lot.



CHARLES TRIKE LAYOUT 1
CHARLES TRIKE LAYOUT 2
CHARLES TRIKE LAYOUT 3
I was introduced to Charles through Walter Galbraith and the Outdoor Group, a walking and cycling club. I told him about my experience building recumbent bikes and aerodynamic Super Mileage cars. and I offered to design and build a body for his recumbent trike. I took initial measurements of his trike for clearance dimensions. The next day I sent Charles a couple of photos of my cars and also one of the construction details.of the Blimp. Nothing really happened for about a couple of months as Charles was, and is, tied up in a property refurbishment in the South. I prepared five 2D sketches laying out options and body plans, open and closed. One of the main topics of discussion had been that I thought Carbon Reinforced Plastic was difficult and messy to prepare, expensive, and worst of all, heavy. I’ll post on this later.
CHARLES TRIKE LAYOUT 4
CHARLES TRIKE LAYOUT 5
All this discussion sbout Velomobiles, got me thinking about building my own for some long distance touring. I resurected a drive system I designed many years ago but never got round to building. It is a Linear Drive which reduces the frontal area of the feet when pedaling. The design for this trike and Charles’ trike body are all based on the principles of using ellipses to generate volumes from one calculted profile to another. I worked up an illustration version to show the difference between that and a plain profile plot. The upper and lower body profiles are NACA 0008. The equator is NACA 16-021. The head faring is also NACA 16-021. All of the plotting co-ordinates are manipulated in an Excel spreadsheet.
CYCLECAR TRIKE LINEAR DRIVE 16021

CYCLECAR TRIKE LINEAR DRIVE 16021 ILLUSThe outcome of our next meeting was although Charles appreciated the 5 examples what he really wanted was my illustration version. I explained he had been seduced by a prettier picture and it is really unwise to set off on a trek round Britain in a untried trike. So I incorporated some of the shape ideas into one of the 5 and set to work building a 3D drawing in Sketchup, which I had only just started using.



RepRap 3D printing

Trying to describe what I wanted to do proved to be very difficult. I realised I needed a 3D drawing package, I asked a few people where to start to look. The range stretches from Free-ware to professional packages costing many thousands of pounds. The general consensus was to go for Blender, it is a package used for modeling 3D animated figures and rendering illustrations. The modeling principle is essentially creating a form in 3D space and then distorting it until you arrive at a result you can live with. I found it’s a very good programme, but not the way I wanted to work. I tried a couple of 3D CAD samples but they were massively competent but quite clumsy to handle, just too much.RepRap Prusa Mendel

At this time, a couple of years ago. I became aware of 3D printing. After a fair amount of surfing and reading I discovered http://reprap.org/wiki/RepRap A project started at Bath University under the leadership of Adrian Bowyer. It is Open Source and has had a huge influence in spreading the technology of 3D printing. RepRap stands for printers which can (self) REPlicate RAPidly. This is exactly what I was looking for. I could draw it in 3D, print it, develop the thinking and forms, redraw and reprint.

The process starts with a drawing made in Sketchup http://www.sketchup.com a free-ware programme which started life as an architectural CAD package and has developed into product design and sketching. The simple drawing is then transferred to Slic3r where the object is “sliced” into 0.25 mm layers, this data is then transferred to Pronterface where it is converted into G-code to instruct the machine on how to move and with the correct amount of plastic. Sketchup is a great programme because it appears simple, very straight forward and accurate. I regularly work in 3 decimal places of a millimeter, that is sufficient for what I want to do at the moment.

IMG_2608

I bought a Prusa Mendel machine kit and built the mechanical hardware. I needed help with the electrics and a friend Walter Galbraith, a lecturer in Electronic Engineering, came and sorted out the wiring. I don’t speak electricity at all. It started as a hobby, building and learning about this new machine and getting it running. I was working on another project and realised I needed a clamp to hold some tubing in place. I measured up the pipe, drew it up in Sketchup, put it through Slic3r, Proterface and started to print in 17 minutes. The end result is EXACTLY what I need, not close or just about, but exactly what is needed. At this point the printer changes from an interesting past-time to an essential tool.

IMG_2576_2

Developing Drawing Volumes

Images for this article can be found in First Prinipals Gallery

While I was delving into the surface of the gigantic field of aerodynamics I came across some figures relating to fish. Birds and humans do a very good job of propelling objects through air, but fish outstrip anything humans can do through water. Hydrodynamics is basically the same problem as aerodynamics, it is just the medium is so much denser and cannot, in any real sense, be compressed. Nuclear submarines with all their gigantic reserves of power can acheive +/-50 knots submerged, or that is what the owners admit to. Sharks have been measured at 55 knots and Blue Marlin have been measured at over 60 knots, admitedly over short distances. Both of these animals have been developing their forms over tens of millions of years. So what is it about their shape that allows them to do this? The first thing that struck me was most fish are not circular in cross section, but elliptical. Now this was not an easy fact to find as in all the web searching I did, I found masses of material, images, giving the distinguishing features of each species but they are all in profile, side-on. Nothing on their cross section. I knew fish are elliptical but I couldn’t prove it. How strange is that?

NACA 63-212 FIRST PRINCIPALS

So…..using my trusty 2D drawing package I started to try and generate a fish shape. I took a NACA 63 profile and at each station I drew an ellipse at 0.75, that is the radius is three quarters the radius of the circle at 90 degrees. (Stations are at right angles to length ways axis of a boat or a plane and become the cross section). I then added radii to mark out where the length-way pieces would go, they are know as longerons. In exactly the same way I did with the tool drawings I projected the intersections back to the vertical and horizontal.



I created an elliptical form in three ways;-
By drawing an ellipse using a constant ratio.
By manipulating the co-ordinates in Excel directly at 0.75 and plotting the result.
By applying the formula for an ellipse to the co-ordinate data
The drawing process was by far the simplest and quickest method and for this theoretical phase was accurate enough.
NACA 63-212 FIRST PRINCIPALS 1
NACA 63-212 FIRST PRINCIPALS PLAN
Why bother with all this, why not just draw a line? I had learnt the quickest way to develop something new, and understand it, is by small incremental steps altering only one aspect at a time. If you attempt two or more aspect changes at once it appears to be faster, until something goes wrong. The time required to unravel what has happened and rectify it is much, much longer than if you stick to the pedantic, plodding course. I also did not have anyone to ask, maybe they were there, but I could not describe what I was attempting to do, clearly enough, to ask the question.
So I now had a fish shape, complete with lines, where I could see the form if I married two drawings in my head. I realised that what I was seeing was a shift in shape. If you take a profile and rotate in a circular fashion around the central axis the shape remains constant, the shape at 90 degrees is the same as the shape at 0 degrees.  Now if the same shape is rotated around an ellipse the initial profile is the same as the circular path one (90 degrees) but as it moves along the ellipse it is part one and part the final shape at 0 degrees. At half way it is half of one profile and half of the profile at 0 degrees. As it continues around the complete ellipse it returns back to the initial profile.
The next step was to reverse the process and increase the ellipse to 1.25 of the original. This worked just the same, surprise, surprise. Add fins, tail. eyes, bingo, a symmetrical fish. Very few things in the natural world are symmetrical.
Now this is where it starts to get complex and it is why I was taking such baby steps and I was feeling my way along. I then took two different profiles that had co-ordinate stations which coincided and drew an ellipse between a profile at 0 degrees and another at 90 degrees.
The ratio of the ellipse changes for each station. Using this I connected three different profiles. The upper profile has it’s maximum depth near the back. The central one, the Equator, is more evenly loaded, and the lower profile is front loaded. Each of these profiles in their own right are calculated for minimum drag. The leap of faith I am making is that the shapes generated between these profiles are also minimum drag, although this is by no means a certainty. The resultant shape generated using this method looks remarkably like a Blue Whale. All of the co-ordinate points to make this form are numerical so the shape can be made using CAM (Computer Aided Manufacturing), this is very important.
MULTI PROFILE FISH 2 NPL9510
MULTI PROFILE FISH 2 NACA5H15
MULTI PROFILE FISH 2 NACA63012A
 MULTI PROFILE FISH 2 STATIONSMULTI PROFILE FISH
The final step in this series was to make a shape using four profiles connected by ellipses. If all the profiles are different then the resulting form is assymetrical and looks like your lower leg with the shin bone and three different outlines of the calf muscle. All of this work was done with an ancient version of a simple 2D drawing programme, no 3D work, no Computer Flow Diagnostics, just simple thought process and first principle thinking. I had come to the point where I could ‘see’ what I had generated but I needed to be able to show it to other people in 3D to make it clear.



Drawing volumes

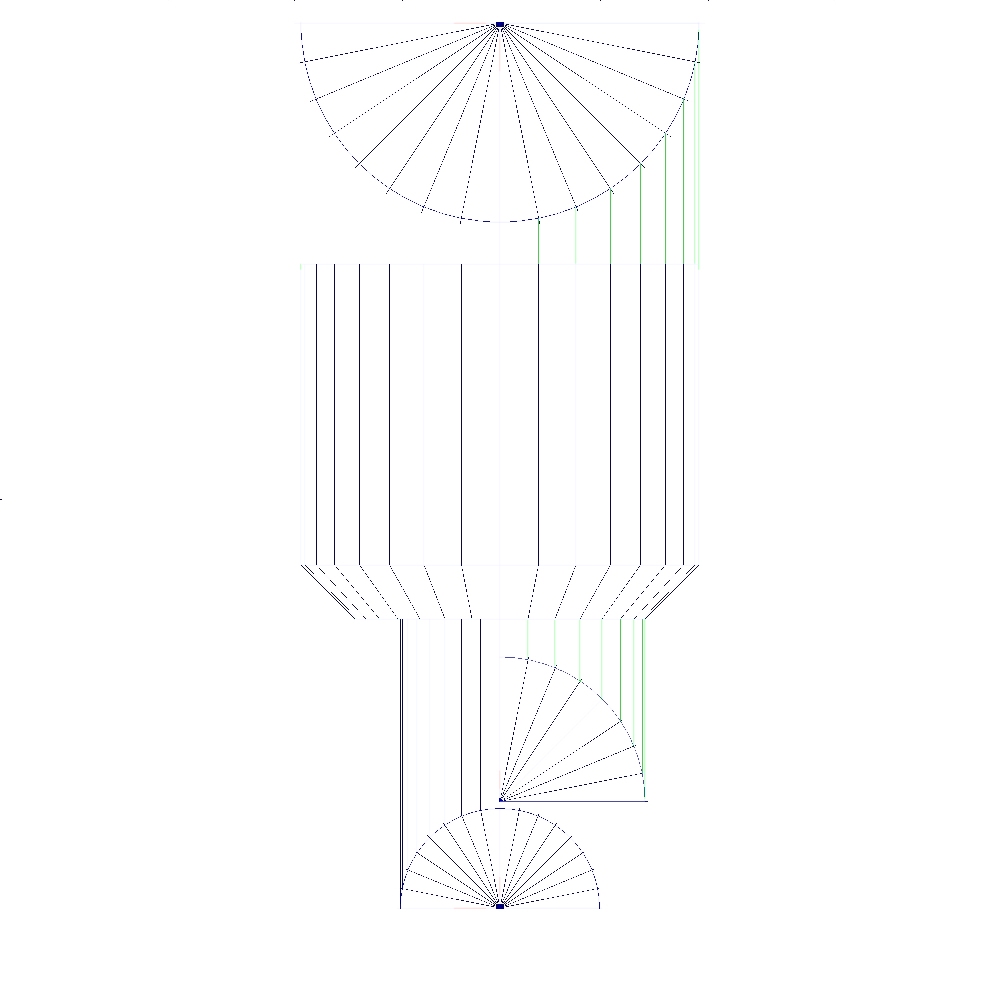

2.0 Radial spacingShortly after receiving a drawing program, Paint Shop Pro, I had to come up with an  illustration of the concept for an oilwell tool. I had no one to ask, so I had to come up with my own solution, which entailed viewing the subject from above, in plan view. I then drew radii and where they cut the circle I projected them back to the ‘horizontal’. When the subject was rotated, 90 degrees, to a side elevation, the edge of the facet was then measured out. I had no idea if this was correct from a Technical Drawing or Draughting practice, but it worked well enough to give a 3D appearance to a 2D drawing. By adjusting the diameter and connecting facets I could create cones, recesses, chamfers, etc. By using layers I could alter the tone value of a flat colour or textures, using the guidelines of a template placed above it. This was long before 3D programmes do all this for you automatically.2.0 Taper Mandrel

Using this simple drawing procedure I started a series of sketches for ceramic pieces. They were based on the basic language of down-hole tools. The langage first comes from the need for strength, that there is enough material to stand up to the forces, stress relief to make sure it doesn’t snap and then ease of manufacture. There is another aspect which tells you on the outside how it is put together on the inside. They are purely functional pieces of equipment, they have no aesthetic qualities applied to them, they are not styled in the least. Consequently these tools have an appearance and form that is totally their own. I first had to build the machinery to make them, which I did eventually start, but circumstances overtook that project

6-1-4-conn-queen-body-structure

I did keep the idea of portraying an object by rotating from the profile to the cross section and back again. . The first project to fully use this was the Super Mileage car which was nicknamed “The Blimp”.  I drew up a NACA 63 profile and scaled it until the shoulders of the driver fitted inside and the rear wheels also. The chassis was divided into bulkheads to carry loads from the wheels and the drivers weight. The upper body was divided by into stations. This is how boats and planes have been designed for decades. The chassis is an extrusion of the NACA 63 in that it is straight sided and is the same cross section looking from above, it is pulled up. The upper body is the same profile but rotated 180 degrees, it is spun along it’s length.ScanBlimp Xsection

The head faring is NACA 63 but rotated and scaled to allow the driver to turn his head, and still keep the minimum 4:1 ratio, it is 4 time longer than it  wide. It is both spun and extruded. A lathe works by spinning material and applying cutters to achieve the profile. A mill cuts depths vertically  and horizontally and can achieve an ‘extruded’ result. This is how the 3D drawing programmes I have used work. Draw a profile, spin it and it looks like a lightbulb, or a wheel, or a bowl. Draw a circle and extrude it and it becomes a column, a rectangle and it becomes a house brick or a table top.Second attempt3





BOC-1(36)By using a calculated aero profile like the NACA 63 I was trying to give myself the best chance of a aerodynamically clean shape without having to pay for wind tunnel time, I did not have a Formula 1 budget. These curves have a tension that comes from guiding the path of the air as the object moves through it. If the curve is not right it stops guiding and starts disturbing the air until it can be as bad as if there was nothing there at all.

The design of the gH2Ost, the second Mileage car I built, was a natural development of the first. The sides were a profile, MH-27 rotated 180 degrees. The central profiles were scaled to give enough volume for the driver. The head faring to the the tail was a third profile. All three profiles are low drag, calculated curves. They were then connected simply, hopefully creating low drag shapes in between.
The development of this idea became a project on it’s own……..

The beginning of a new direction





Event guide

It’s strange how some things begin. Davy, my very good friend, told me about an event he had bumped into at the weekend. He had taken his boys to see the Shell Eco Marathon run at the Alford Motor Museum. Small racing cars drive round a track and the team using the least amount of fuel wins, easy. Or so it appeared until I put in a little research. It turned out this was the tip of an iceberg involving 128 competing teams from schools, universities and individuals spread right across Europe, Scandanavia, USA, Japan and Australia. Shell had started the challenge and had sponsored the event for more than 30 years. The main attraction for me was there are very few rules. The vehicle has to have more than 2 wheels, it has to have a human driver in control and it has to move under it’s own power. There are safety and construction rules to specify mirrors, seatbelts, rollbars, fire extinguishers that sort of thing. If you think you can win by using an engine from a double decker bus, try it, find out.

Team Fancy_Carol

I researched the most successful teams and the cars they had built. They were all very small and very light with small and light drivers. Aerodynamics seemed to play a major role which is surprising for vehicles which move so slowly. The engines were comparatively small, but there was very little information available. I have always enjoyed building light weight structures and using light weight materials. I knew I could not compete building an engine but I could by designing the chassis, body

Initial sketches

and geometry. Most of the cars were Tadpole tricycles with the 2 front wheels steering and the single rear driving. The driver lies prone with their head tilted just enough to see over their feet, this gives a very low frontal area. Mostly the front wheels were encased in faring front wings. Rightly or wrongly I figured this would lead to the air travelling into the tunnel between the farings would increase in pressure leading to turbulence and drag. I would attempt to divert the airflow as much as possible to avoid barriers.

I drew up a series of layouts gradually narrowing down compromises until I was happy with the overall scheme. After a short period I returned to the design and it struck me what do these lines, these curves, actually represent?, Initial drg1.pdfand can i do better. I started to delve into aerodynamics, especially concerning Human powered vehicles (HPV’s) and World Solar Challenge cars. Both have very limited power available and both have made incredible advances in performance.

At the heart of the aerodynamic work are databses containing NACA airfoil profiles. These profiles are calculated, not drawn and have been used in mostly aircraft applications for wings, struts, propellers but have also been used for designing boats, rudders and keels.

I downloaded a profile (NACA 0010) ready to copy the curve and away we go……. NACA 0010.dat



What I found was two lists of numbers, six digit decimals. I was not expecting this, I was expecting an image. The numbers are X and Y co-ordinates. This was the begining of a line of research and work that would last for years, until the present day.
